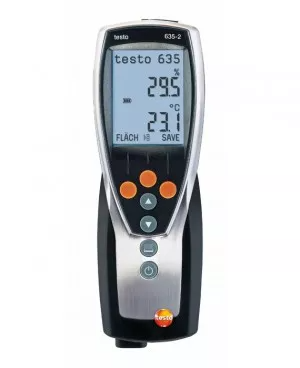

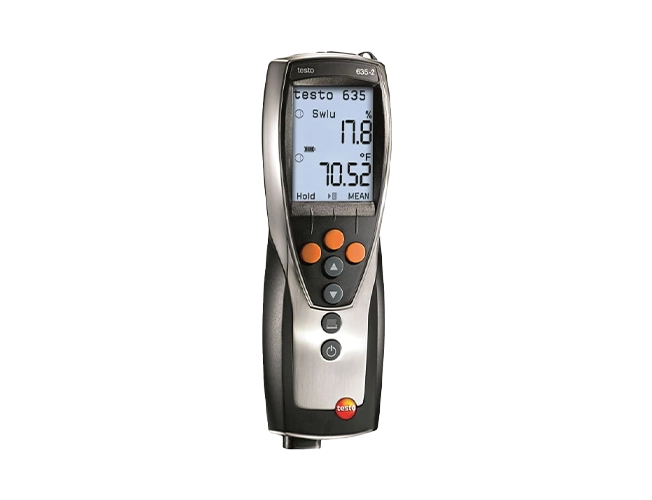

Testo 635-2 Thermo-Hygrometer/Moisture Meter
-
NG # 00838-HW-TESTO-038
Manufactured by:
Measure air, surface and core temperatures, relative humidity, material moisture, absolute pressure and pressure dew point in compressed air systems with a wide range of optional probes. Capacity for 2 connectable sensors and 3 temperature/moisture wireless sensors.
Specification
Storage temperature -22 to +158 °F Operating temperature -4 to +122 °F Battery type Alkali manganese, mignon, Type AA Battery life 200 hr (without radio operation) Dimensions 8.66 x 2.91 x 1.81 in Housing material ABS/TPE/Metal
Typ T (Cu-CuNi)
| Technical data | |
|---|---|
| Measuring range | -328 to +752 °F |
| Accuracy | ±0.54 °F (-76 to +140 °F) ±0.5% of rdg. (remaining range) |
| Resolution | 0.1 °C |
NTC
| Technical data | |
|---|---|
| Measuring range | -40 to +150 °C |
| Accuracy | ±0.2 °C (-25 to +74.9 °C) ±0.4 °C (-40 to -25.1 °C) ±0.4 °C (+75 to +99.9 °C) ±0.5% of rdg. (remaining range) |
| Resolution | 0.1 °C |
Absolute Pressure Probe
| Technical data | |
|---|---|
| Measuring range | 0 to 802 inH2O |
| Resolution | 0.1 inH2O |
Humidity
| Technical data | |
|---|---|
| Measuring range | 0 to +100 %RH |
| Resolution | 0.1 %RH |
Typ K
| Technical data | |
|---|---|
| Measuring range | -328 to +2498 °F |
| Accuracy | ±0.54 °F (-76 to +140 °F) ±0.5% of rdg. (remaining range) |
| Resolution | 0.1 °C |
Description
The Testo 635-2 Thermohygrometer / Logger has a wide selection of temperature and moisture probes to measure, record, anaylze and report data for a number of commercial and industrial applications.
This measuring instrument needs a probe for being commissioned.
The Testo 635-2 can display min/max/avg values and calculate the dew point difference between the indoor air and the surface of the wall. Both the meter and the menu guide are simple and comfortable to use. A backlit display allows you to read the measurements in poor lighting and a rugged case protects the meter against impact.
Measurements can be saved as single input or recorded over time by user-defined intervals to specific file locations for easy download to ComSoft Software for analyzing and reporting. With the optional, wireless printer, on-site documentation is a button push away.
Features
- Probes for humidity, moisture, temperature, pressure dew point and absolute pressure measurements
- Capacity for two wired and three wireless probe connections
- Large memory saves up to 10,000 readings
- Fast function keys make easy work of user-defined tasks
