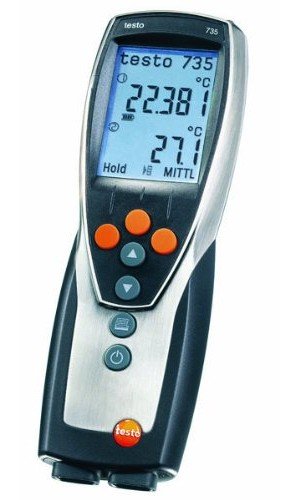

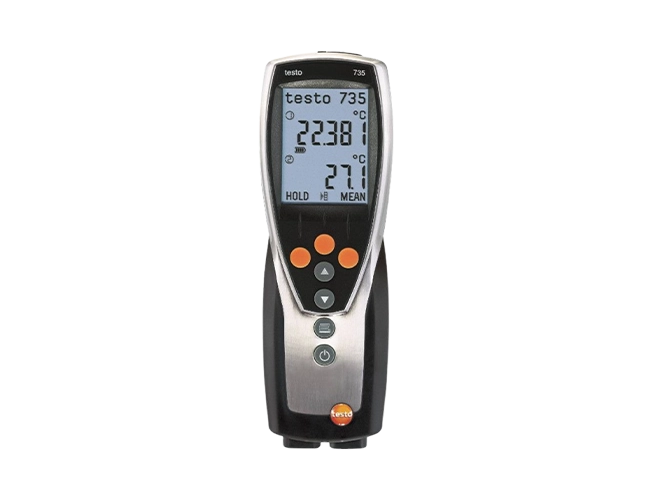

Testo 735-1 3-Channel RTD/Thermocouple Thermometer
-
NG # 00839-HW-TESTO-039
Manufactured by:
Highly versatile, multi-channel thermometer with logging ability and location management. A wide range of optional probes available.
Specification
Temperature - Pt100 Measuring Range -200 to 800°C Accuracy ±0.2°C (-100 to 199.9°C)
±0.2 % of mv (Remaining Range)Resolution 0.05°C Temperature - TC Type K (NiCr-Ni) Measuring Range -200 to 1370°C Accuracy ±0.3°C (-60 to 60°C)
±(0.2°C + 0.3 % of mv) (Remaining Range)Resolution 0.1°C Temperature - TC Type T (Cu-CuNi) Measuring Range -200 to 400°C Accuracy ±0.3°C (-60 to 60°C)
±(0.2°C + 0.3 % of mv) (Remaining Range)Resolution 0.1°C Temperature - TC Type J (Fe-CuNi) Measuring Range -200 to 1000°C Accuracy ±0.3°C (-60 to 60°C)
±(0.2°C + 0.3 % of mv) (Remaining Range)Resolution 0.1°C Temperature - TC Type S (Pt10Rh-Pt) Measuring Range 0 to 1760°C Accuracy ±1°C (0 to 1760°C) Resolution 1°C General Specifications Dimensions 220 x 74 x 46 mm Operating Temperature -20 to 50°C Housing ABS / TPE / Metal Protection Class IP65 Standards EN 13485 Battery Type Alkali Manganese, Mignon, Type AA Storage Temperature -30 to 70°C Weight 428 g
Description
When fully equipped, three radio probes and three attachable probes can be registered and displayed. For classical probes with a wire, there are two inputs available for fast thermocouple probes (Type K/T) and one input for high precision Pt100 probes.
Please note: You will need a sensor to use your meter. Select from a wide range of optional sensors. The accuracy of your measurements depends on the accuracy of the sensors and the meter.
Features
- System accuracy up to 0.05°C
- Highest precision over the entire measuring range thanks to system adjustment
- Storage of single measurements or measurement series by location
- Print out on site with optional printer
- Connections for 3 attachable probes and three radio probes
- Limit values alarm
- Display of Delta T, min/max, and mean values
- Illuminable display
- Protection type IP 54
