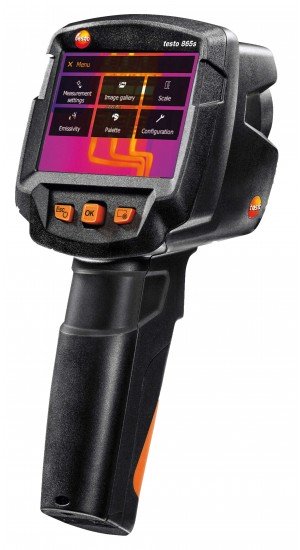

Testo 865S Thermal Imager, 160 x 120, 100 mK
-
NG # 00808-HW-TESTO-008
Manufactured by:
Power on, aim, and analyze with this thermal imager ideal for entry into thermography and offers SuperResolution technology of 320 x 240 pixels. In addition, this imager features the best image quality and intuitive operation, fits comfortably in hand, and is robust enough to withstand the rigors of everyday use.
Specification
Infrared Resolution 160 x 120 pixels Thermal Sensitivity (NETD) <0.18°F (0.1°C) (100 mK) Field of View/Minimum Focusing Distance 31 x 23°/<1.6' (0.5 m) Geometric Resolution (IFOV) 3.4 mrad SuperResolution (Pixel/IFOV) 320 x 240 pixels, 2.1 mrad Image Refresh Rate 9 Hz Focus Fixed Spectral Range 7.5 to 14 μm Image Presentation Image Display 3.5" (8.9 cm) TFT, QVGA Display Options IR image Color Palettes Iron, rainbow HC, cold-hot, grey General Specifications Measurement Range: -4 to 536°F (-20 to 280°C)
Accuracy: ±3.6°F (±2°C), ±2% of measurement value (larger value applies)
Emissivity/reflected temperature compensation: 0.01 to 1/manualMeasurement Functions Analysis functions: Mean point measurement, hot/cold-spot recognition, delta T
ScaleAssist: Yes
IFOV Warner: YesLens 31 x 23° Video Streaming Via USB Imager Storage File format: .bmt and .jpg; export options in .bmp, .jpg, .png, .csv, .xls
Memory: Internal memory (2.8 GB)Power Supplies Battery type: Li-ion battery can be changed on-site
Operating time: 4 hours
Charging option: In instrumentTemperature Ranges Operating: 5 to 122°F (-15 to 50°C)
Storage: -22 to 140°F (-30 to 60°C)Air Humidity 20 to 80% RH, not condensing Housing Protection Class (IEC 60529) IP54 Vibration (IEC 60068-2-6) 2G System Requirements Windows 8.1 and 10 EU Directive 2014/30/EU Housing PC - ABS Dimensions 8.6 x 3.8 x 3.7" (219 x 96 x 95 mm) Weight 1.12 lbs (510 g)
Description
Suitable for various applications, this user-friendly imager is quick and accurate for detecting leaks, identifying overheated connections, pinpointing thermal bridges, and detecting structural defects. Additionally, this imager features the IFOV warner and ScaleAssist functions.
