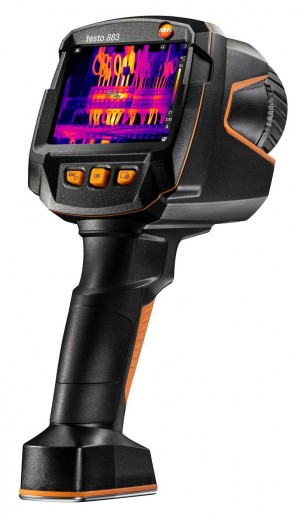

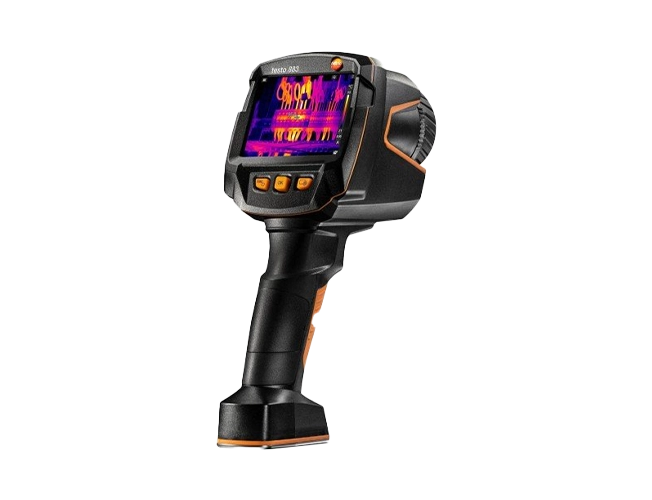

Testo 883 Thermal Imager, 320 x 240, <40 mK
-
NG # 00811-HW-TESTO-011
Manufactured by:
Suitable for maintenance staff, facility managers, and energy consultants, this thermal imager features SuperResolution technology with 640 x 480 pixels and thermal sensitivity of <40 mK. Additionally, this imager provides outstanding quality and reliability for thermal measuring tasks.
Specification
Infrared Resolution 320 x 240 pixels Thermal Sensitivity (NETD) <40 mK Field of View/Minimum Focusing Distance Standard lens: 30 x 23°/<0.3' (0.1 m) Geometric Resolution (IFOV) Standard lens: 1.7 mrad SuperResolution (Pixel/IFOV) 640 x 480 pixels, 1.1 mrad Image Refresh Rate 27 Hz Focus Manual Spectral Range 7.5 to 14 μm Image Presentation Image Display 3.5" (8.9 cm) TFT, QVGA (320 x 240 pixels) Digital Zoom 2x, 4x Display Options IR image/real image Color Palettes Iron, rainbow, rainbow HC, cold-hot, blue‑red, grey, inverted grey, sepia, Testo, iron HT, humidity palette General Specifications Measurement Ranges
1: -22 to 212°F (-30 to 100°C)
2: 0 to 1202°F (0 to 650°C) manual/automatic switchover
Accuracy: ±3.6°F (±2°C), ±2% of measurement value (higher value applies)
Emissivity/reflected temperature compensation: 0.01 to 1/manual
ε-Assist: Automatic recognition of emissivity and determination of reflected temperature (RTC)Measurement Functions Analysis: Centre point measurement, hot/cold spot detection, delta T
ScaleAssist: Yes
IFOV warner: Yes
Humidity mode manual: Yes
Solar mode manual: Input of solar radiation value
Electrical mode manual: Input of current, voltage or powerImage Size/Minimum Focusing Distance 3 MP/<1.3' (0.4 m) Wi-Fi Connectivity Communication with the Thermography App; Wireless module Bluetooth/Wi-Fi Touch Operation Capacitive touch display Laser Laser marker (laser class 2, 635 nm) Video Streaming Via USB via Wi-Fi with Thermography App Tripod Socket For wrist strap or a photo tripod with UNC thread File Format .bmt and .jpg; export options in .bmp, .jpg, .png, .csv, .xls Memory Internal memory (2.8 GB) USB USB-C, USB 2.0 Power Supplies Battery type: Fast-charging, li-ion battery can be changed on site
Operating time: ≥ 5 hours
Charging option: In instrumentTemperature Ranges Operating: 5 to 122°F (-15 to 50°C)
Storage: -22 to 140°F (-30 to 60°C)Air Humidity 20 to 80% RH, not condensing Housing Protection Class (IEC 60529) IP54 Vibration (IEC 60068-2-6) 2G System Requirements Windows 7, 8, and 10 EU Directive EMC: 2014/30/EU
RED: 2014/53/EU
WEEE: 2012/19/EU
RoHS: 2011/65/EU + 2015/863
REACH: 1907/2006Housing PC - ABS Dimensions 6.7 x 3.7 x 9.3" (171 x 95 x 236 mm) Weight 1.8 lbs (827 g)
Description
Easily find root cause issues with this imager that includes 76,800 temperature measuring points. Additionally, this imager features SiteRecognition for automatically assigning thermal images to correct measurement objects.
