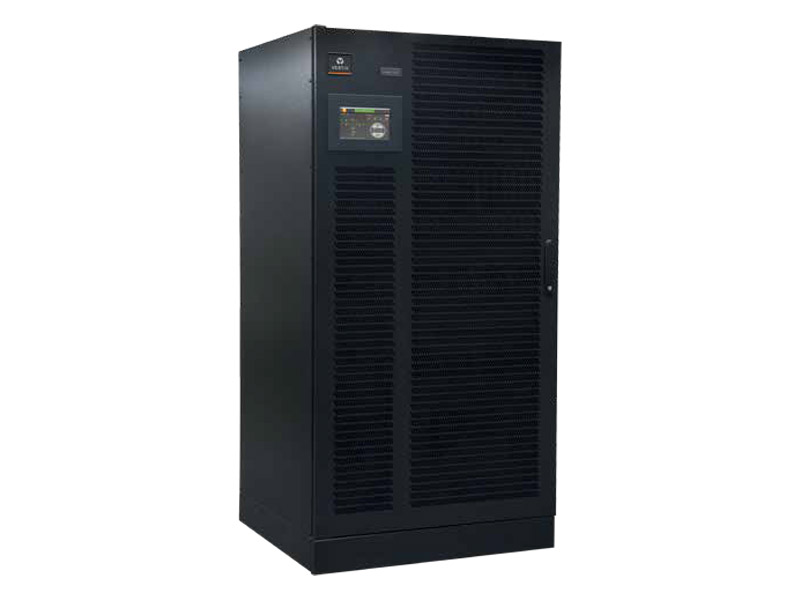

Liebert EXL S1 300kW - 1200kW

  • NG # 006007-HW-VERTIV-007

Manufactured by:

This seller generally responds in under 48 hours

Specification

  • Flexibility and compatibility
  • Improved efficiency
  • Intelligent paralleling
  • Reduced TCO
  • Transformer-free design
  • Full IGBT three-level NPC2 topology
  • Excellent input performances:
    - PF > 0.99
    - THDi < 3%
  • Automatic output power upgrade of up to +10%
  • Output PF diagram symmetrical respect to zero
  • Three and four wire electrical compatibility
  • Centralized and distributed parallel capabilities
  • Seismic compliance

Description

The new Liebert® EXL™ is a monolithic product that features a transformer-free design with a full IGBT three-level topology, providing extraordinary features including a double conversion efficiency of up to 97% plus intelligent paralleling to optimize efficiency at partial load, thus achieving superior running cost savings as well as reduced TCO and CO2 emissions. Liebert EXL can operate with both standard VRLA and new Li-ion batteries thus adapting to all possible requirements in terms of runtime, life expectancy and TCO, and showing extreme flexibility.
