Vertiv CoolLoop RDHx
-
NG # 006049-HW-VERTIV-049
Manufactured by:
This
seller generally responds in under 48 hours

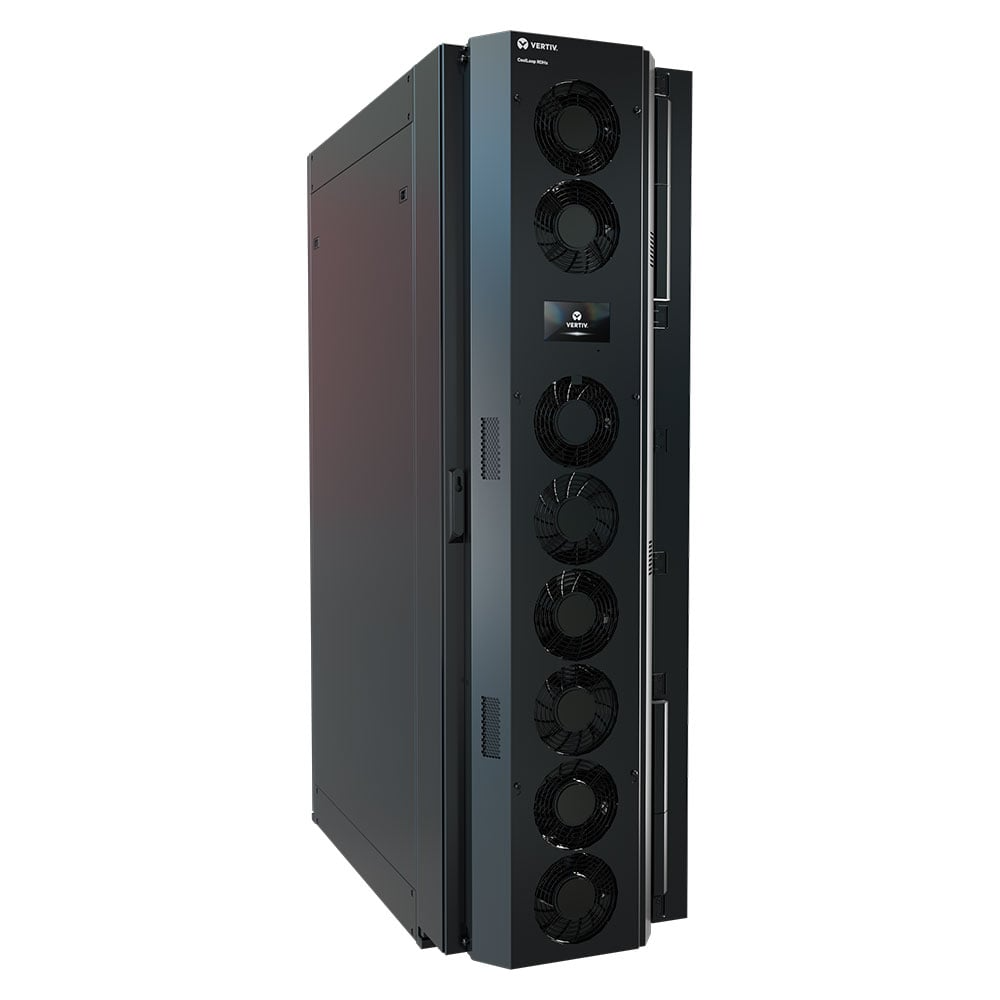

The Vertiv™ CoolLoop RDHx chilled water solution is a rack-based chilled water rear-door heat exchanger is a cost and energy efficient high-performance cooling system with the best cooling capacity and the lowest footprint.
Specification
- Space-saving cooling system with a nominal cooling capacity of 85 kW
- Rack widths of 600mm and 800mm
- Pressure-independent control valve
- Modular design, active and passive modules can be supplied separately and Vertiv CoolLoop RDHx active fan unit can be easily retrofitted
- The swivel joint makes the door easy to operate
- High efficient EC fans to reduce operational costs
- State-of-the-art Vertiv™ Liebert iCOM™ controller and a modern network interface with the Unity Card for remote monitoring and control
- Optional A/B transfer switch provides power redundancy to ensure minimal downtime
Description
The modular design of both passive and active fan units allows for customizable configurations, enabling adjustment based on varying thermal loads. Vertiv™ CoolLoop RDHx is perfectly suited to complement direct-to-chip liquid cooling by handling the air-cooling component.
