RX9502
-
NG # 001316-HW-vivotek-016
-
MF # RX9502
Manufactured by:
This
seller generally responds in under 48 hours
H.265 32-CH Embedded Video Receiver
Specification
| Specification | Details |
|---|---|
| Model | VIVOTEK RX9502 |
| Type | 32-Channel Embedded Video Receiver |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Camera Resolution | Up to 20 MP |
| Video Output | 1 × HDMI (up to 3840 × 2160, 4K UHD) |
| Decoding Performance | Up to 90 fps @ 4K / 360 fps @ 1080p |
| Display Modes | Multiple split-window layouts, fisheye dewarping supported |
| Network Interface | 1 × RJ-45 (10/100/1000 Mbps Ethernet) |
| Power Input | DC 12 V ± 10% |
| Power Consumption | Max 11 W |
| Operating Temperature | –10 °C ~ +50 °C (14 °F ~ 122 °F) |
| Dimensions (W × D × H) | 198 × 200 × 47 mm |
| Weight | Approx. 470 g |
| Design | Compact, fanless |
| Software Compatibility | VAST 2, VAST Security Station |
| Protocol Support | ONVIF Profile S |
| Certifications | NDAA, CE, FCC |
| Country of Origin | Made in Taiwan |
Description

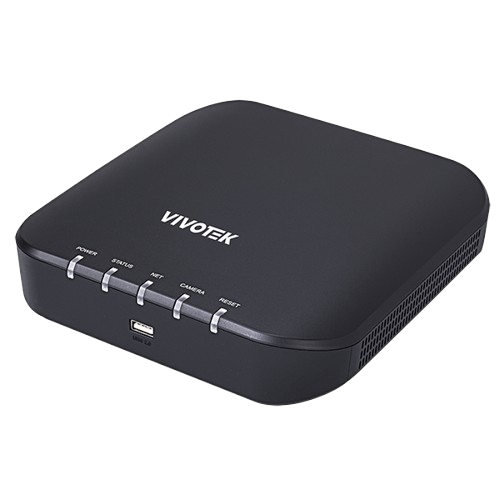

The VIVOTEK RX9502 is a high-performance H.265 32-channel embedded video receiver designed for real-time IP video decoding and display. Supporting up to 20 MP cameras and 4K HDMI output, it offers multiple split-window layouts, fisheye dewarping, and seamless integration with VAST 2 and VAST Security Station. Its compact, fanless design ensures silent, reliable operation. Made in Taiwan and NDAA compliant, it’s ideal for professional surveillance and control room applications.
