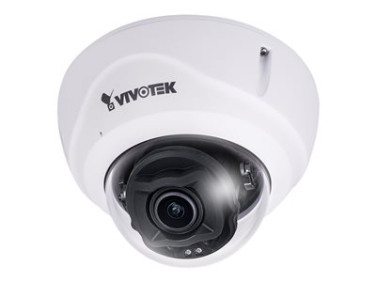

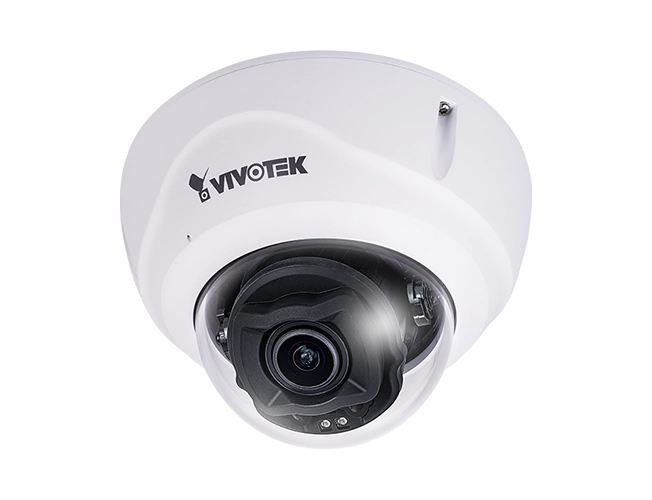

Vivotek FD9387-HTV-A - V Series - network surveillance camera - dome
-
NG # 001303-HW-vivotek-003
Manufactured by:
Vivotek FD9387-HTV-A - V Series - network surveillance camera - dome - outdoor - vandal / weatherproof - color (Day&Night) - 5 MP - 2560 x 1920 - vari-focal - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / AC 24 V / PoE
Specification
General Device Type Network surveillance camera Audio Support Yes: two-way audio capability, built-in microphone Form Factor Dome Connectivity Technology Wired Width 6.1 in Depth 6.1 in Height 4.1 in Weight 32.06 oz Camera Type Color - Day&Night - fixed - outdoor - vandal/weatherproof Digital Video Format MJPEG, H.264, H.265 Max Digital Video Resolution 2560 x 1920 Motion Detection Yes Digital Zoom 48 Exposure Range 1/5 sec - 1/32000 sec Minimum Illumination 0.075 lux - color - F1.4 ¦ 0.01 lux - B&W - F1.4 ¦ 0 lux - IR Infrared LEDs 4 Infrared Distance 164 ft Frame Rate (max) 30 frames per second RAM 1 GB Flash Memory 256 MB Features Manual white balance, Backlight Compensation (BLC), date/time stamp, sharpness control, saturation control, brightness control, contrast control, image flip, image mirror, ONVIF support, Privacy Mask Function, Seamless Recording, Highlight Compensation (HLC), ePTZ, NAS-Ready, Text Caption Overlay, triple video stream, Wide Dynamic Range (WDR) Pro, Audio Detection, Defog, Supreme Night Visibility, 3D Digital Noise Reduction Technology, remote focus, exposure control, infrared-cut filter, Smart Stream III, Smart Motion Detection Image Sensor Type 5 MP CMOS 1/2.7" Lens Construction Type Vari-focal Optical Zoom 5 x Focal Length 2.7 mm - 13.5 mm Lens Iris F/1.4-2.8 (P-Iris) Focus Adjustment Motorized Horizontal Field of View (degree) 30 - 100 Vertical Field of View (degree) 23 - 72 Diagonal Field of View (degree) 38 - 135 Panning Range (degree) 350 Tilting Range (degree) 80 Interfaces Network Interface Ethernet 10Base-T/100Base-TX Network Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, RTCP, PPPoE, SMB, IGMP, SSL, QOS, CoS, CIFS Alarm Inputs Qty 2 Alarm Outputs Qty 2 Expansion / Connectivity Ports LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out Supported Memory Cards microSD Card, microSDHC Card, microSDXC Card Miscellaneous Compliant Standards FCC Class A certified, UL, VCCI, C-Tick, IP67, IK10, IP66, LVD, BIS Power Power Requirements DC 12 V / AC 24 V / PoE Power Device 12 Watt Software / System Requirements OS Required Microsoft Windows 7 / Windows 8, Apple macOS 10.12 Manufacturer Warranty Service & Support Limited warranty - 3 years Environmental Parameters Min Operating Temperature 14 °F Max Operating Temperature 122 °F Relative Humidity (operating) 0 - 98%
Description
VIVOTEK FD9387-A is a series of outdoor dome network camera offering up to 30 fps @ 5-Megapixel or 60 fps @ full HD sensor with superb image quality at all resolutions or frame rates. Featuring VIVOTEK SNV and WDR Pro technology, FD9387-A Series is capable of capturing high quality image whether in high contrast or low light environment.
The FD9387-A series offers remote focus lens for different user scenario. IR illuminators are equipped with 50 meter effective range for better night visibility. For harsh outdoor environment, FD9387-A series is encased in IP66, IP67 and IK10 housing, making it impervious to rain and dust.
Employing VIVOTEK's Smart Stream III technology and H.265 codec support, the FD9387-A Series reduces bandwidth up to 90% while keeping great image quality.
