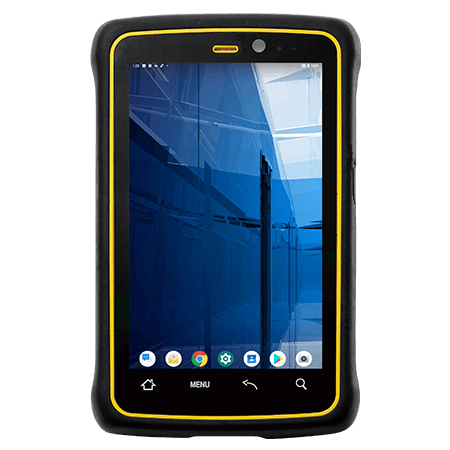

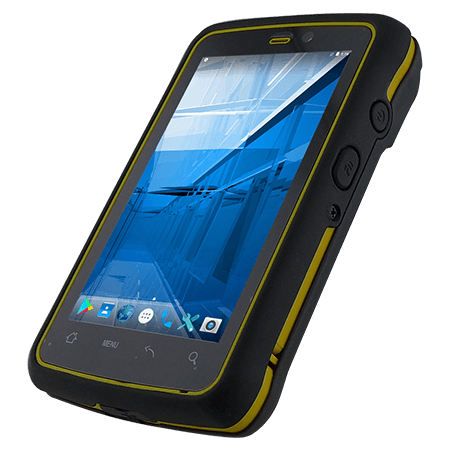

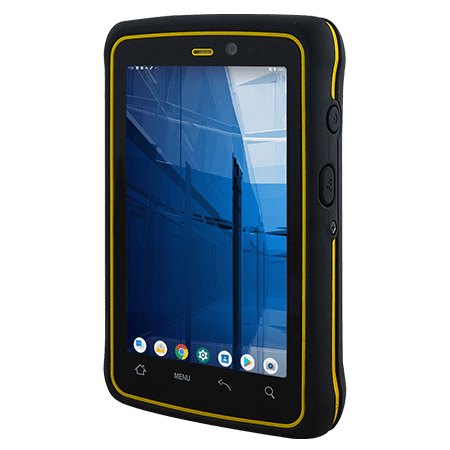

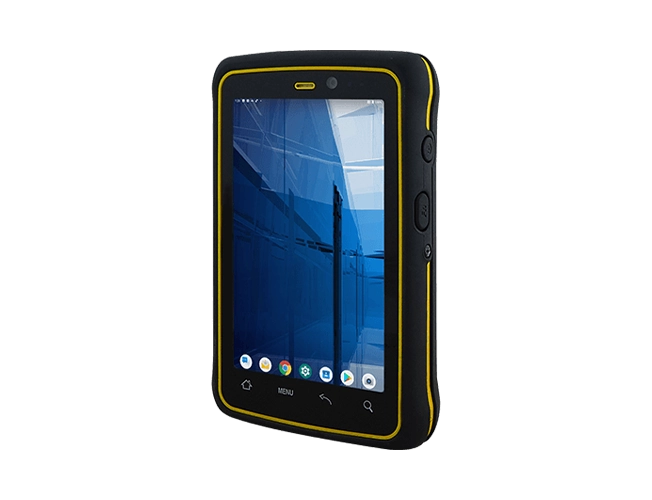

Winmate E430RQ8 4.3" Qualcomm® Snapdragon™ 660 Rugged handheld PDA
TF:
003811-HW-WIN-O11
Overview
Gain high efficiency and versatility with the E430RQ8 Rugged Tablet equipped with Qualcomm® Snapdragon™ 660 Octa-core processor that delivers stable performance at a higher power level efficiency.
| Display | |
| Size | 4.0 inches |
| Resolution | 480x800 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 550.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 80,80,80,80 |
| System Specification | |
| Processor | Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz) |
| Memory | 3GB |
| Storage | 32GB |
| Operating System | Android 11.0 |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| RFID | NFC (Read / Write, Peer to Peer mode) (Optional) |
| Sensors | Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors |
| Camera | |
| Front Camera | 8MP Camera |
| Rear Camera | 13MP Camera with LED Auxiliary Light (Auto Focus) |
| Mechanical | |
| Dimension | 132.57 x 81.87 x 27.4 mm |
| Weight | 260g |
| IO Ports | |
| USB Port | 1 x USB 3.0 Type C OTG (support charging) |
| Audio | 1 x Built-in Mic 1 x Speaker |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x Micro SIM Card Slot |
| Indicator | 1 x LED Indicators (Power, Battery) |
| Docking Connector | 1 x Docking Connector |
| Environment | |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 4 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Control | |
| Button | 1 x Volume +/- , 1 x Power Button, 1 x Function Button, 4 Capacitive Button (1 x Home, 1 x Menu, 1 x Esc, 1 x Search) |
| Power | |
| Battery | 3.7V 3900mAh |
| Battery Operating Time | 20Hr |
| Power Rating | 5V |
| Adapter | 5V 1A Adapter with USB TypeC |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Accessory | |
| Accessory | Universal Adapter USB Type-C Cable Battery Hand Strap |
| Optional Accessory | Charging Dock 2 bay Charging Dock 6 bay Battery Charging Dock 2 bay Battery Charging Dock 6 bay Vehicle Charging Dock Battery Leather Holster Lanyard Micro SD Card |
Built to Survive personal digital assistant Sealed to IP65, the E430RQ8 rugged mobile computer is built to withstand harsh environments protect against water and dust. Compliant with MIL-STD-810G, it can operate in extreme temperatures ranging from -10°C to 50°C and endure shock, vibration, and five ft. drops.
