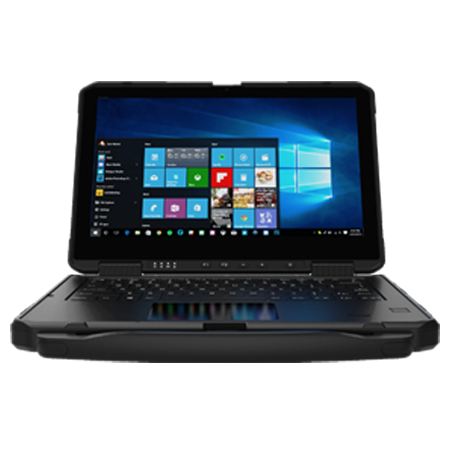

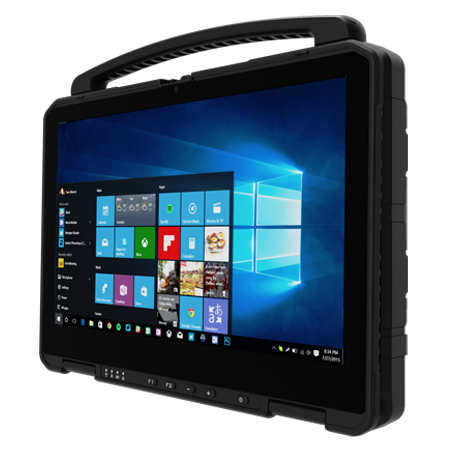

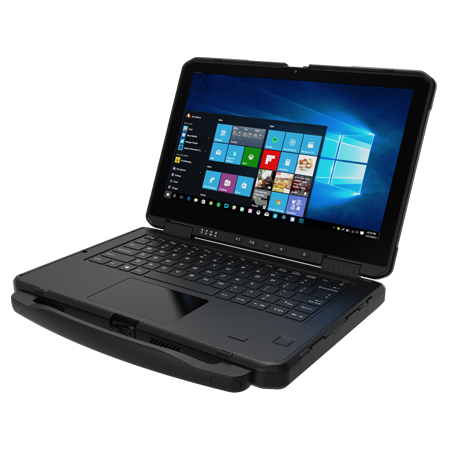

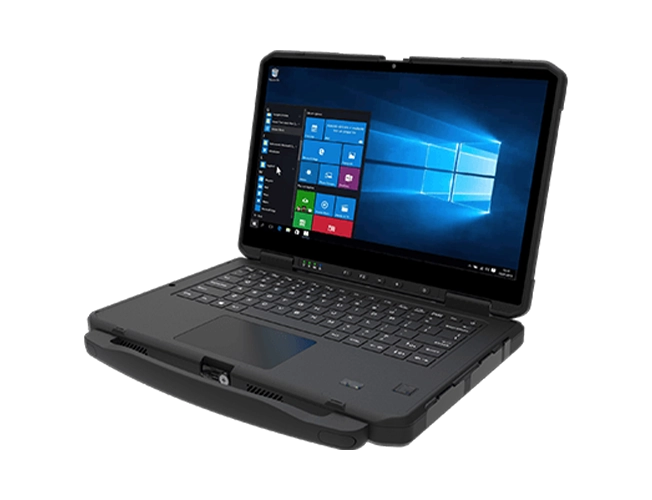

Winmate L140AD-3 13.3-inch Ultra Rugged Laptop
-
NG # 003801-HW-WIN-O01
Manufactured by:
Winmate L140AD-3 13.3-inch Ultra Rugged Laptop with Intel® Core™ i5-1235U
Specification
Display Size 13.3 inches Resolution 1920x1080 Type Projected Capacitive Multi Touch Panel Brightness 500.0 nits Contrast Ratio 1000:1 View Angles 89,89,89,89 Bonding Optical Bonding for Sunlight Viewability System Specification Processor Intel Core i5-1235U (up to 4.4GHz) Memory 8GB DDR5 SDRAM
16GB DDR5 SDRAM (Optional)
32GB DDR5 SDRAM (Optional)Storage 256GB M.2 NVMe SSD
512GB M.2 NVMe SSD (Optional)
1TB M.2 NVMe SSD (Optional)
2TB M.2 NVMe SSD (Optional)
2nd storage available with up to 2TB M.2 NVMe SSD (Optional)Smart Card Reader Smart Card Reader (Mutually exlcusive with 2nd LAN) Security Trusted Platform Module (TPM) 2.0
Kensington LockOperating System Windows 11 IoT Enterprise LTSC (64 bit)
Windows 10 IoT Enterprise LTSC (64 bit) (Optional)WLAN Support BT Support WWAN 4G LTE (Optional)
5G (Optional)GNSS GPS, GLONASS RFID HF RFID reader 13.56 MHz (Optional) Fingerprint Scanner Fingerprint scanner (Optional) Camera Front Camera 2MP front camera Rear Camera 8MP rear camera with autofocus and LED light (Optional) Mechanical Dimension 340 x 230 x 38 mm Weight 2.65 kg Cooling System Fan Design IO Ports USB Port 1 x USB 3.0 (Type C)
3 x USB 3.0 (Type A) (One USB-A is mutually exclusive with 2nd LAN)Serial Port 1 x DB9 (RS232 / RS422 / RS485, software switchable) LAN 1 x RJ45-10/100/1000 GigaLAN port
Optional 2nd LAN (Mutually exlcusive with one USB-A & Smart Card Reader)Video 1 x HDMI 4K Output (Optional) Audio 1 x Audio combo 3.5mm audio combo jack
Dual Digital Mic With Noise Cancellation
Dual SpeakerSD Card Slot 1 x Micro SDXC Slot SIM Card Slot 1 x Nano SIM card slot Indicator 4x LED Indicator for Power, Battery, HDD, RF status Environment Operating Humidity 10% to 90% RH, non-condensing Operating Temperature -20°C to 60°C Storage Temperature -30°C to 70°C Shock MIL-STD-810H Method 516.8 Procedure I Vibration MIL-STD-810H Method 514.8 Procedure I Drop MIL-STD-810H Method 516.8, 4 ft IP rating IP65 EMC MIL-STD-461G CE101, CE102, RE101, RE102, CS118 (Default)
MIL-STD-461G CS101, CS114, CS115, CS116, RS101, RS103
MIL-STD-461G RE102 Ground Army Grade (Optional)Certification Certification CE, FCC Security Function SOTI MobiControl SOTI MobiControl Compliance Kensington Lock Kensington Lock Support Control Button 1 x Power, 2 x volume key,
2 x Programmable Function Keys
QWERTY keyboard with RGB backlightPower Battery Hot-swappable 2 x 11.55V, typ. 3220 mAh Li-Ion Battery (3S1P) Battery Operating Time Standard Battery: 11 hours Power Rating 19V DC Adapter 100-240V, 50-60Hz / 19V DC Accessory Accessory Adapter and Power Cord
Standard BatteryOptional Accessory Spare Battery (Optional)
Battery Charger (Optional)
Vehicle Charger (Optional)
Carry Bag (Optional)
Description
Durability for Harsh Environment, Tough Exterior Winmate laptop has passed the drop test from a meter high and impact resistance with performance assurance according to the US Defence Standard MIL-STD-810H and certified by IP65 ingress protection to ensure no environment is too hazardous for this rugged laptop.
