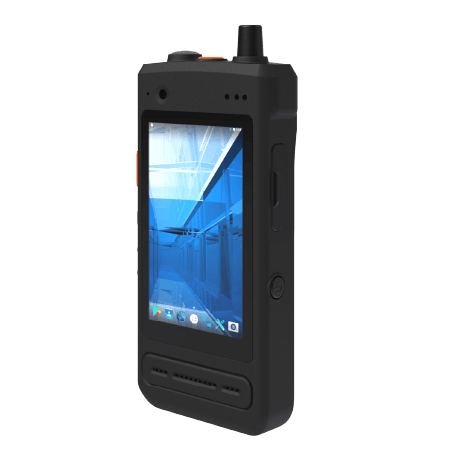

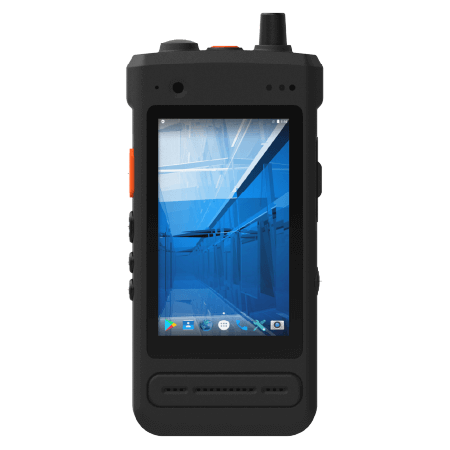

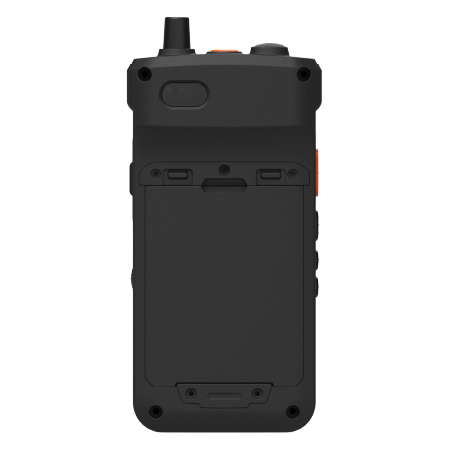

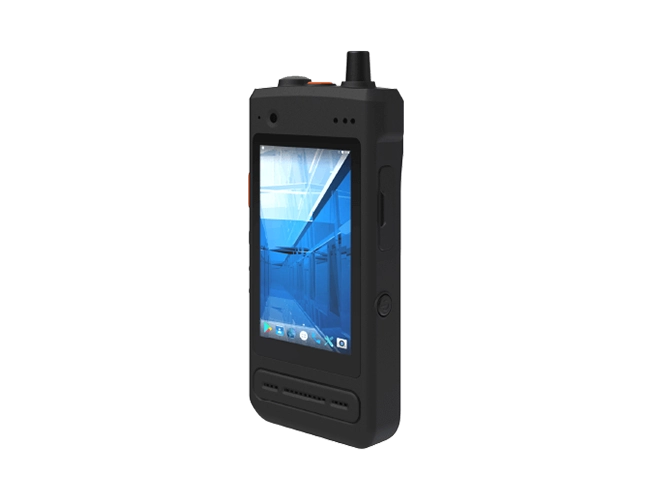

Winmate P400M9 4" ARM A73 + A53 Rugged Handheld Computer
TF:
003808-HW-WIN-O08
Overview
Winmate P400M9 4" ARM A73 + A53 Rugged Handheld Computer
| Display | |
| Size | 4.0 inches |
| Resolution | 480x800 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 550.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| System Specification | |
| Processor | ARM A73 x 4 (2.0 GHz) + A53 x 4 (2.0 GHz) |
| Memory | 4GB |
| Storage | 64GB |
| Smart Card Reader | Smart Card Reader |
| WLAN | Support |
| Operating System | Android 11.0 |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS, GLONASS |
| RFID | NFC (Read / Write, Peer to Peer mode) (Optional) |
| Sensors | Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors |
| Camera | |
| Front Camera | 8MP Camera |
| Weight | 330g |
| IO Ports | |
| USB Port | 1 x USB Type C OTG (support PD 2.0 charging) |
| Audio | 1 x Kenwood Audio Combo connector (Mic in or Line Out) 1 x Built-in Mic 1 x Speaker |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x Micro SIM Card Slot |
| Indicator | 1 x LED Indicators (Power, Battery) |
| Docking Connector | 1 x Docking Connector |
| Certification | |
| Certification | CE, FCC |
| Control | |
| Button | 1 x Power Button, 3 x Function Button, 1 x PTT Button, 1 x SOS Button |
| Power | |
| Battery | 7.6V 2700mAh |
| Battery Operating Time | 8Hr |
| Power Rating | 15V |
| Adapter | 15V PD Adapter with USB TypeC |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Accessory | |
| Accessory | Universal Adapter Battery |
| Optional Accessory | Spare Battery (Optional) Battery Charger (Optional) Vehicle Charger (Optional) Carry Bag (Optional) |
Easy to use, easy to operate With a compact and ergonomic design, the Winmate handheld tablet is easy for one-handed use. Winmate PoC handheld solutions provide an intuitive and familiar Android interface with programmable buttons, a loud and clear speaker, and long hours of battery life.
