Winmate P400M9-DMR 4" Multi-mode PoC Radios
-
NG # 003810-HW-WIN-O10
Manufactured by:

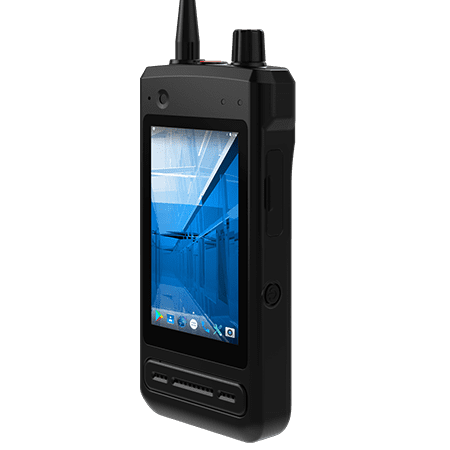

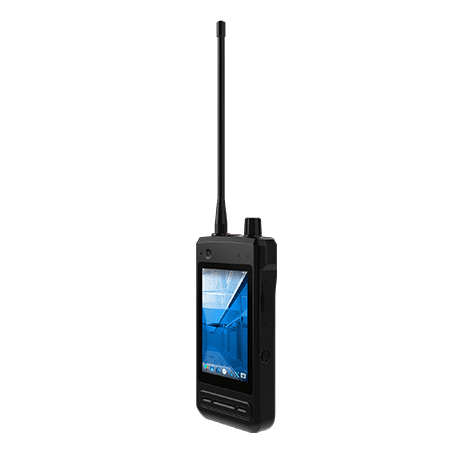

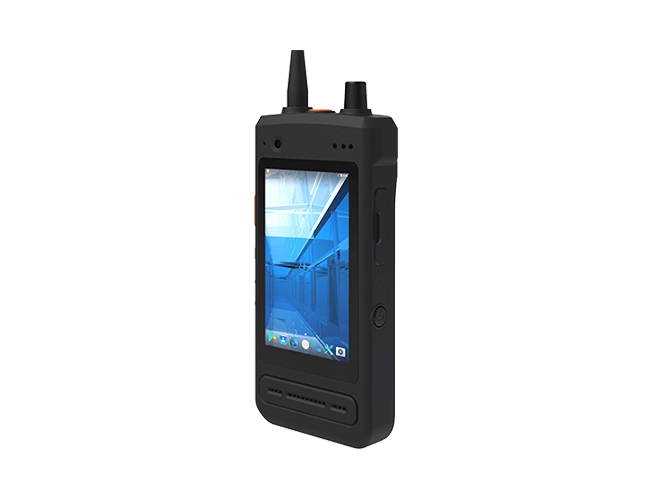

P400M9-DMR 4" Multi-mode PoC Radios
Specification
Display Size 4.0 inches Resolution 480x800 Type Projected Capacitive Multi Touch Panel Brightness 550.0 nits Contrast Ratio 800:1 View Angles 80,80,80,80 Bonding Optical Bonding for Sunlight Viewability System Specification Processor ARM A73 x 4 (2.0 GHz) + A53 x 4 (2.0 GHz) Memory 4GB Storage 64GB Smart Card Reader Smart Card Reader WLAN Support Operating System Android 11.0 BT Support WWAN 4G/LTE (Optional) GNSS GPS/AGPS RFID NFC (Read / Write, Peer to Peer mode) (Optional) Sensors Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors Radio Transceiver Channel Spacing DMR: 12.5kHz, Analog: 12.5/25kHz TX Power 4W/0.5W RX Sensitivity ≤-121dBm Digital Vocoder Type AMBE Frequency Range VHF：136~174MHz or UHF：400~480 MHz Camera Front Camera 8MP Camera Rear Camera 13MP Camera with LED Auxiliary Light (Auto Focus) Mechanical Dimension 156.56 x 75 x 26 mm Weight 370g IO Ports USB Port 1 x USB Type C OTG
(support PD 2.0 charging)Audio 1 x Kenwood Audio Combo connector (Mic in or Line Out)
1 x Built-in Mic
1 x SpeakerSD Card Slot 1 x Micro SD Card Slot SIM Card Slot 1 x Micro SIM Card Slot Indicator 1 x LED Indicators
(Power, Battery)Docking Connector 1 x Docking Connector Certification Certification CE, FCC Environment Operating Humidity 5% to 95% RH, Non-Condensing Operating Temperature -20°C to 60°C Storage Temperature -30°C to 70°C Shock MIL-STD-810H Method 516.8 Procedure I Vibration MIL-STD-810H Method 514.8 Procedure I Drop MIL-STD-810H Method 516.8, 4 ft IP rating IP65 Control Button 1 x Power Button, 3 x Function Button, 1 x PTT Button, 1 x SOS Button Power Battery 7.6V 2700mAh Battery Operating Time 8Hr Power Rating 15V Adapter 15V PD Adapter with USB TypeC Security Function SOTI MobiControl SOTI MobiControl Compliance Accessory Accessory UHF/VHF Antenna
Universal Adapter
BatteryOptional Accessory USB Type-C Cable
Micro SD Card
Charging Dock 2 bay
Charging Dock 6 bay
Description
Built around the Android platform, Winmate PoC Solutions gives the best of a modern mobile phone, including an intuitive and familiar interface. Access to all your favorite utilities and the ability to make mobile calls also browse the web. The P400M9-DMR also incorporates all the essential features you would expect from a PoC radio, including dedicated PTT and emergency buttons, a talkgroup rocker switch, and long battery life.
