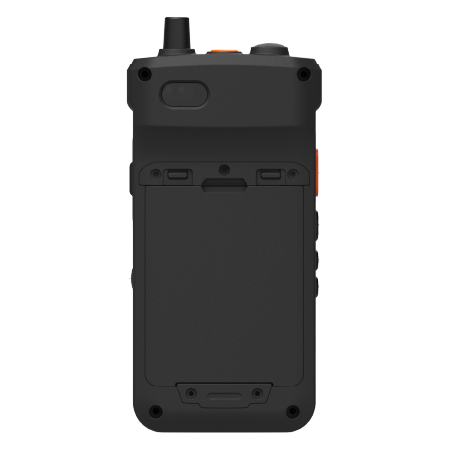

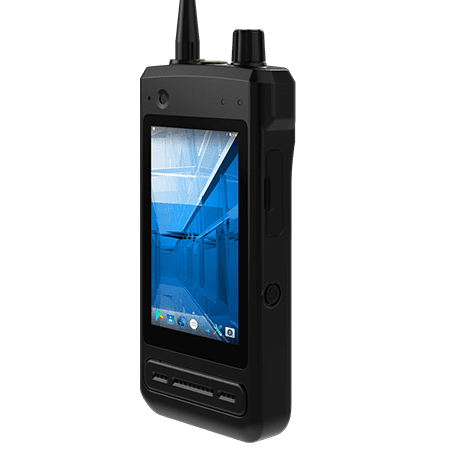

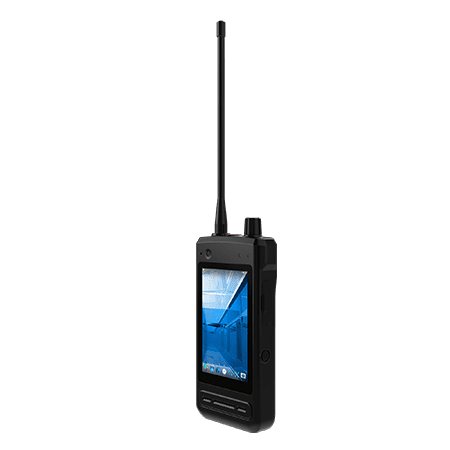

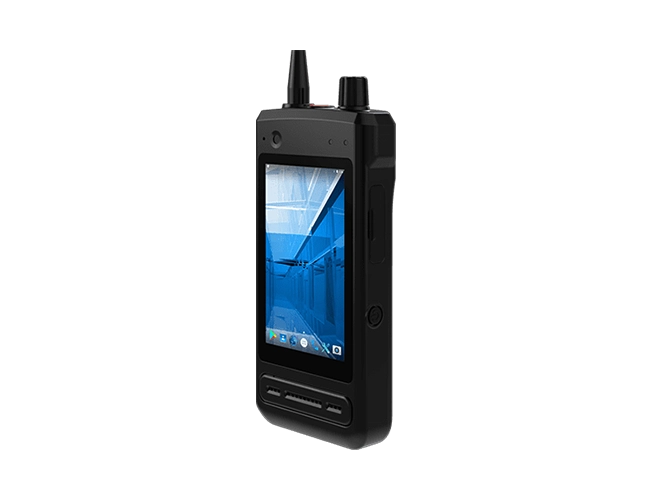

Winmate P400M9-DMRBH 4" Multi-mode PoC Radio with Barcode Reader
TF:
003809-HW-WIN-O09
Overview
Winmate P400M9-DMRBH 4" Multi-mode PoC Radio with Barcode Reader
| Display | |
| Size | 4.0 inches |
| Resolution | 480x800 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 550.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Radio Transceiver | |
| Channel Spacing | DMR: 12.5kHz, Analog: 12.5/25kHz |
| TX Power | 4W/0.5W |
| RX Sensitivity | ≤-121dBm |
| Digital Vocoder Type | AMBE |
| Frequency Range | VHF：136~174MHz or UHF：400~480 MHz |
| System Specification | |
| Processor | ARM A73 x 4 (2.0 GHz) + A53 x 4 (2.0 GHz) |
| Memory | 4GB |
| Storage | 64GB |
| Smart Card Reader | Smart Card Reader |
| WLAN | Support |
| Operating System | Android 11.0 |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS/AGPS |
| RFID | NFC (Read / Write, Peer to Peer mode) (Optional) |
| Sensors | Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors |
| Camera | |
| Front Camera | 8MP Camera |
| Rear Camera | 13MP Camera with LED Auxiliary Light (Auto Focus) |
| Mechanical | |
| Dimension | 156.56 x 75 x 26 mm |
| Weight | 370g |
| IO Ports | |
| USB Port | 1 x USB Type C OTG (support PD 2.0 charging) |
| Audio | 1 x Kenwood Audio Combo connector (Mic in or Line Out) 1 x Built-in Mic 1 x Speaker |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x Micro SIM Card Slot |
| Indicator | 1 x LED Indicators (Power, Battery) |
| Docking Connector | 1 x Docking Connector |
| Certification | |
| Certification | CE, FCC |
| Environment | |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 4 ft |
| IP rating | IP65 |
| Control | |
| Button | 1 x Power Button, 3 x Function Button, 1 x PTT Button, 1 x SOS Button |
| Power | |
| Battery | 7.6V 2700mAh |
| Battery Operating Time | 8Hr |
| Power Rating | 15V |
| Adapter | 15V PD Adapter with USB TypeC |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Accessory | |
| Accessory | Universal Adapter Battery |
| Optional Accessory | Spare Battery (Optional) Battery Charger (Optional) Vehicle Charger (Optional) Carry Bag (Optional) |
Built around the Android platform, Winmate PoC Solutions gives the best of a modern mobile phone, including an intuitive and familiar interface. Access to all your favorite utilities and the ability to make mobile calls also browse the web. The P400M9-DMRBH also incorporates all the essential features you would expect from a PoC radio, including dedicated PTT and emergency buttons, a talkgroup rocker switch, and long battery life.
