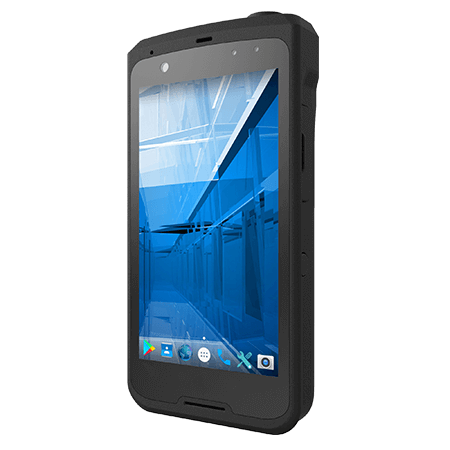

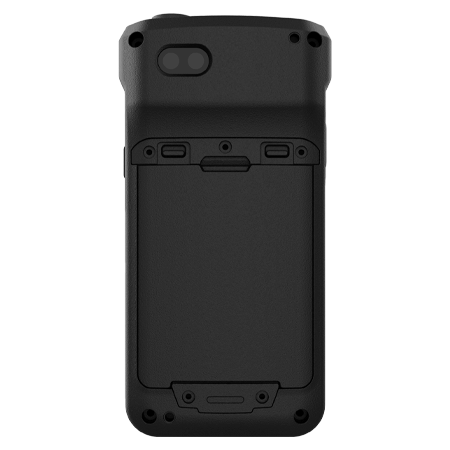

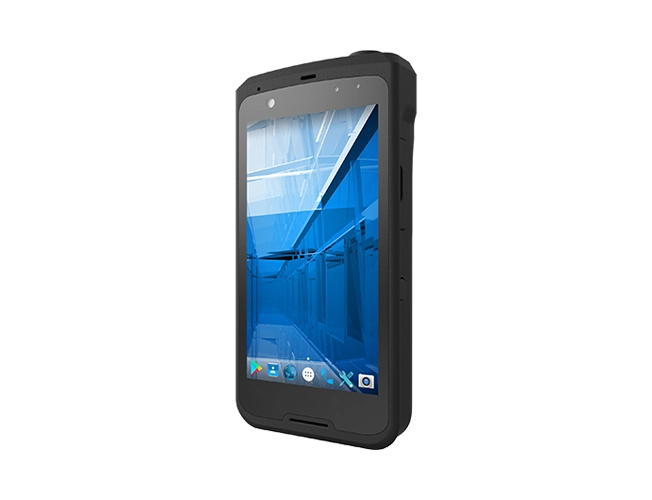

Winmate P500M9 5" ARM A73 A53 Rugged Handheld Computer
TF:
003812-HW-WIN-O12
Overview
Winmate P500M9 offers an intuitive interface, granting easy access to your favorite utilities, enabling mobile calls, and effortless web browsing. The P500M9 is equipped with indispensable PoC radio features, boasting dedicated Push-To-Talk, emergency buttons, and an extended battery life for enhanced performance.
| Display | |
| Size | 5.0 inches |
| Resolution | 1280x720 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 500 nits |
| Contrast Ratio | 800:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Touch Mode | Support Hand / Gloves and Rain Mode |
| System Specification | |
| Processor | ARM A73 x 4 (2.0 GHz) + A53 x 4 (2.0 GHz) |
| Memory | 4GB |
| Storage | 64GB |
| Operating System | Android 11.0 |
| WLAN | Support |
| BT | Support |
| GNSS | GPS/AGPS |
| WWAN | 4G/LTE (Optional) |
| RFID | NFC (Read / Write) (Optional) |
| Sensors | Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors |
| Camera | |
| Front Camera | 8MP Camera |
| Rear Camera | 13MP Camera with LED Auxiliary Light (Auto Focus) |
| Mechanical | |
| Dimension | 132.57 x 81.87 x 27.4 mm |
| Weight | 260g |
| IO Ports | |
| USB Port | 1 x USB Type C OTG (support PD 2.0 charging) |
| Audio | 1x Audio Jack 2 x Builtin Mic 1 x Speaker 1 x Receiver |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x Micro SD Card Slot |
| Indicator | 1 x LED Indicators (Power, Battery) |
| Docking Connector | 1 x Docking Connector |
| Environment | |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 4 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Control | |
| Button | 1 x Volume +/-, 1 x Power Button, 2 x Function Button |
| Power | |
| Battery | 7.6V 2700mAh |
| Battery Operating Time | 8Hr |
| Power Rating | 5V |
| Adapter | 5V 1A Adapter with USB TypeC |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Accessory | |
| Accessory | Universal Adapter Battery |
| Optional Accessory | USB Type-C Cable Micro SD Card Battery Charging Dock 2 bay Battery Charging Dock 6 bay |
The Winmate P500M9, featuring a 5-inch color LCD, incorporates seamless optical bonding to enhance user experience through easy-to-read screens. Effortlessly navigate the Winmate handheld computer in various scenarios, whether dealing with wet conditions or wearing gloves, ensuring adaptability and user-friendly operation.
