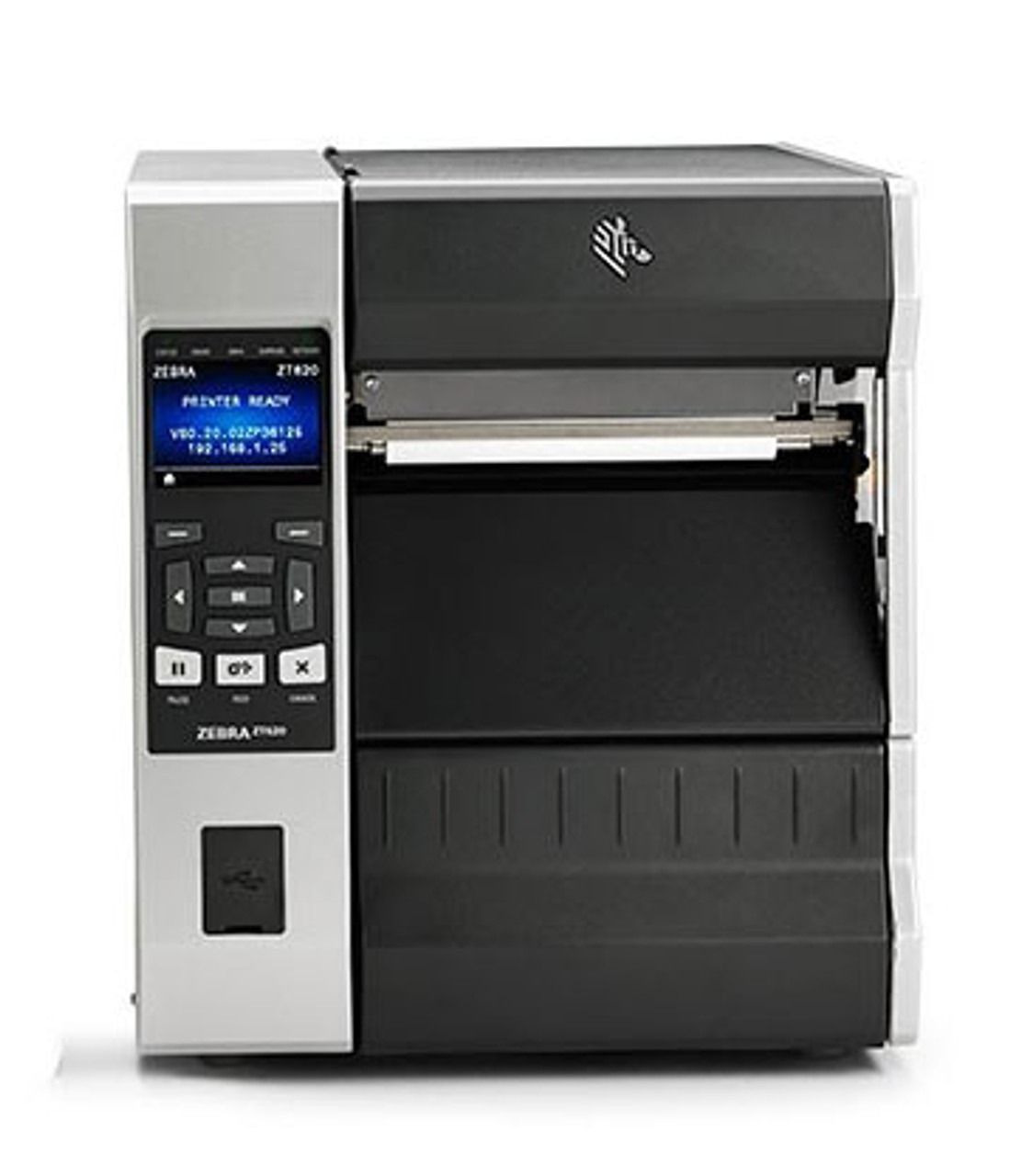

Zebra ZT620 Industrial Printers
005101-HW-ZABRA-001
Overview
ZT600 Series Industrial Printers have you covered today—and for years to come.
| Product Type | Industrial Printer |
| Print Method | Thermal transfer and direct thermal printing |
| Body Material | Metal frame and bi-fold metal media cover |
| Sensors | Dual media sensors: transmissive and reflective |
| Memory | 1 GB RAM memory, 2 GB on-board linear Flash memory |
| Resolution | 203 dpi/8 dots per mm, 300 dpi/12 dots per mm (optional),600 dpi/24 dots per mm (optional for ZT610 only) |
Print Speed
| 12 ips/305 mm per second
|
| Print Width | 6.6"/168 mm |
| Media Type | Continuous, die-cut, notch, black-mark |
| Media Size | 8.0"/203 mm O.D. on a 3"/76 mm I.D. core |
| Media Thickness | 0.0023"/0.058 mm to 0.010"/0.25 mm |
Ribbon Features
| (Thermal-transfer option only) Standard Length : 1476'/450 m , Width : 2.00"/51 mm to 4.33"/110 mm, Core : 1.0"/25.4 mm I.D. |
RFID Features
| Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols , Integrated RFID system is user-upgradable in the field and available on both 4" and 6" models , Adaptive Encoding Technology automatically selects optimum encodes |
| Certification | IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2,EN 61000-3-3, cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM,S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro |
| Dimension | (LxWxH) 19.88x10.56x15.58 Inch |
| Weight | 50 lbs/22.7 kg |
Advancing the legacy of their industry-leading Xi Series predecessors, the ZT610 and ZT620 combine rugged durability and exceptional performance on a user-friendly, future-ready platform. These next-generation workhorses are designed to help you navigate the rapidly evolving business technology landscape.
To keep your critical operations running smoothly, you need high-performance industrial printing systems that can stand the test of time, both physically and technologically. Zebra's ZT620 advances the legacy of their industry leading Xi Series predecessors, offering next-generation operational visibility, control and adaptability to meet your evolving needs – all with the rugged durability and 24/7 reliability you expect from Zebra.
